How to provide Ethernet and POE to IP cameras and devices over existing coax cable?

Use Veracity’s HIGHWIRE range of Ethernet and POE over Coax products

This range of devices allows you to transfer IP signal over existing coax cable, eliminating the need to replace coax with Ethernet cable, which can save some 30-40% of the system cost. In short – turns an old legacy installation, with coax cable, into a future-proof IP network.

VHW-HW HIGHWIRE
Ethernet over coax video cable adaptor.

Allows IP network cameras to communicate over existing coax. HIGHWIRE supports mega-pixel cameras, uses legacy cables and cuts your installation costs. It is highly reliable and very easy to install. Just plug them in.

• Full 100Base-TX Ethernet performance
• Up to 300m on RG59, 500m on RG11

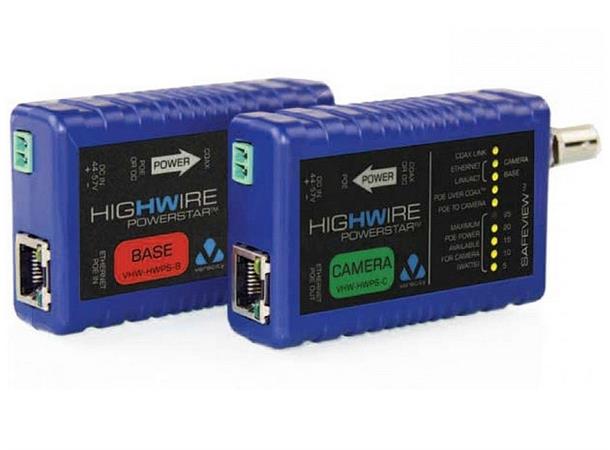

VHW-HWPS-B
VHW-HWPS-C
HIGHWIRE Powerstar base and camera units

Deliver high-speed Ethernet and reliable POE power delivery over existing coaxial cable.

• Reliably power POE Plus cameras (25watts)
• A true plug-and-play solution for connecting and powering IP cameras over legacy coaxial cabling
• Full 100Base-TX Ethernet performance
• SAFEVIEW™ instantly checks connection and power status

VHW-HWPS-B4
VHW-HWPS-B8
HIGHWIRE Powerstar Base4 and Base 8

Base 4 enables you to replace existing analogue video encoders with a four-channel Ethernet and POE over coax.

Base 8 is specifically designed as a cost-effective solution to provide Ethernet and POE to multiple IP cameras and devices over existing coax, and up to 32 channels in 1U. See: VPSU-57V-1U-UK

VHW-HWPS-C2
VHW-HWPS-C4
HIGHWIRE Powerstar Duo and Quad

These units allow you to re-use existing coax cable for 2 or 4 IP cameras or devices.

• Integrated 2 or 4-port POE switch (POE Plus with local power option)
• 100BaseTX performance over 300m of RG59 (500m on RG11)
• Compatible with all HIGHWIRE Powerstar Base units (1, 4 & 8ch)

VLS-1P-BC
VLS-1P-CC
VLS-1N-LC
HIGHWIRE Longstar Base, Camera and Lite

Deliver unsurpassed power and bandwidth over extreme distances of legacy coaxial cable, especially in rail and metro applications.

• Unrestricted 100Base-T and POE over 1400m (4,600ft) on RG11
• Ruggedised for high-performance over extreme temperature range
• Fully automatic, simple to install and maintenance-free
• BS EN 50121-4 compliant (rail and metro)
• Up to 4.2km (2.5 miles) data-only link at 10Base-T without POE

We also stock Veracity’s range of accessories and optional PSUs to power its range of products. As an example VPSU-57V-1U-UK optional rackmount PoE PSU delivers up to 500W in a 1U space, with up to 32Ch PoE EoC or 16ch PoE Plus EoC With its 57VDC input this PSU can power 32 channels of Ethernet over Coax with POE (802.3af) or 16 channels of PoE Plus (802.3at) and is designed for mounting behind HIGHWIRE Base 8 units or other Veracity Base devices.
